Audit of Lighter's Wrapper Circuits

Lighter • October 10th, 2025 • Technical Report

Introduction

On October 6th, 2025, Lighter tasked zkSecurity with auditing the Plonky 2 wrapper circuits. The audit lasted one week with two consultants. During the engagement, the zkSecurity team was granted access to the relevant parts of the Lighter codebase. A number of observations and findings have been reported to the Lighter team. The findings are detailed in the latter section of this report. The codebase was found to be of high quality, accompanied by unit tests and an integration test for the wrapper circuit.

Scope

The primary scope of this audit was the Wrapper layer of the Lighter circuits. More specifically, it served as a follow-up to two engagements conducted one and two months earlier. The first audit focused extensively on Lighter’s top-level circuits in the Prover’s circuit/src directory as well as all files in circuit/src/types/ and circuit/src/transactions/, along with circuit/src/bigint/unsafe_bit/mod.rs. The second audit focused on changes introduced by the Lighter team and included the directories: src/delta, src/recursion, src/bigint, src/hints, and src/comparison.

This audit focused explicitly on the Wrapper circuits of Lighter. Specifically, it covered the commit 0028b73b1e38de7e7c7e4ad33c7680a39e2c6c90 and the following components:

WrapperInnerCircuit, WrapperOuterCircuit, WrapperCircuit from src/recursion/wrapper_circuit.rs
BlobEvaluationCircuit from src/blob/blob_constraints.rs
EvaluateBitstreamGate from src/blob/evaluate_bitstream.rs
BlobPolynomialTarget from src/blob/blob_polynomials.rs

Importantly, the BLS12-381 code and the Gnark outer circuit were not covered in this engagement.

Overview

The reports from our three previous audit engagements already provide extensive explanations of Lighter’s protocol. To avoid redundancy, we will not repeat those details here. Instead, we refer the reader to the first, the second and the third reports, as well as the whitepaper and documentation, for an introduction to the protocol.

Accordingly, this report does not include a general overview. Rather, we briefly highlight the wrapper circuits that were the focus of this particular audit and explain their logic.

WrapperInnerCircuit

This section describes what the Wrapper Inner Circuit verifies, how each sub‑step works, and how the blob bytes are structured, read, and connected into the various checks.

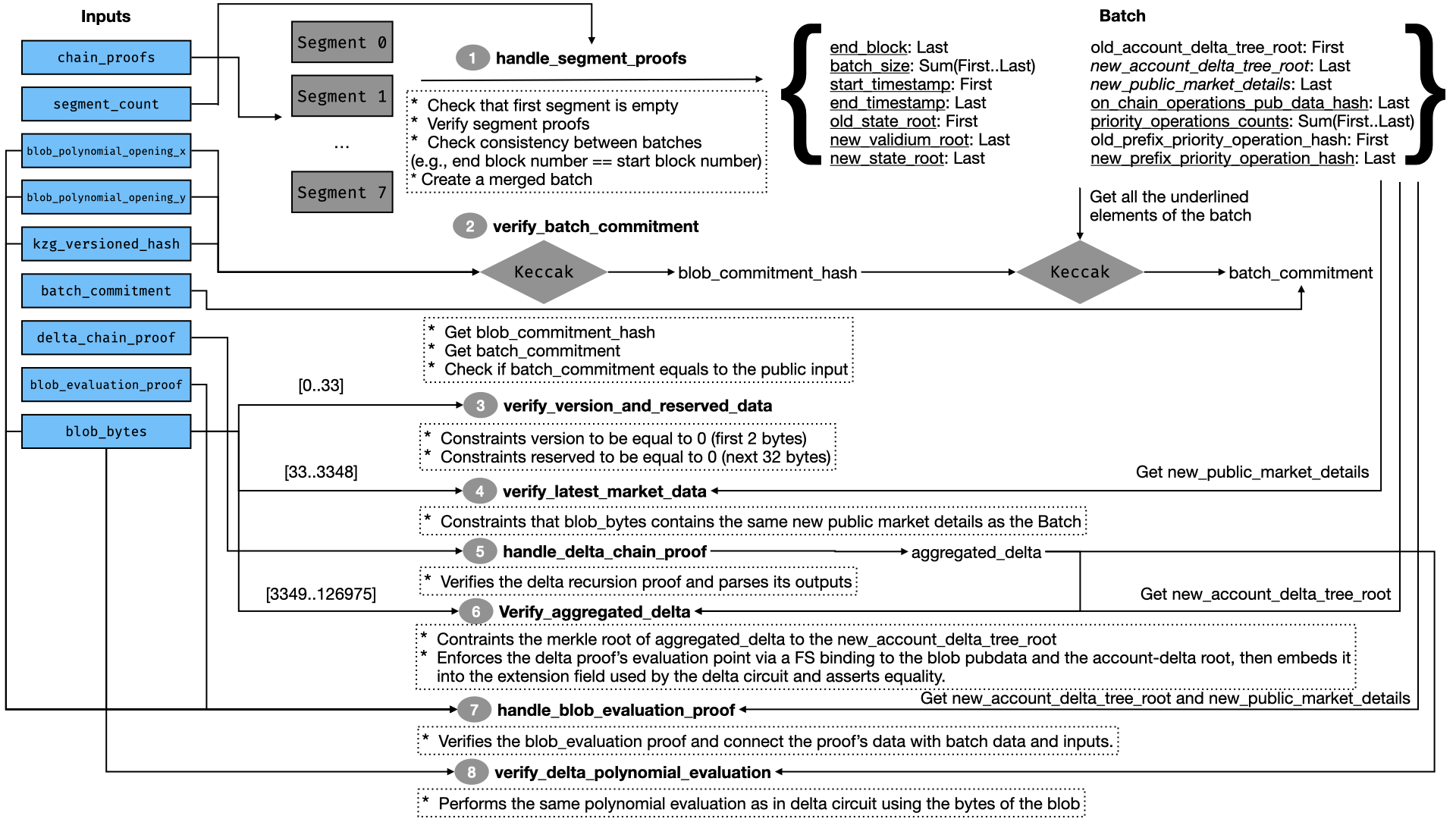

The following figure depicts the Wrapper Inner Circuit logic.

tree

High‑Level Flow

handle_segment_proofs
- Verifies the first segment and enforces the initial invariants (first segment is empty).
- Conditionally verifies the remaining segment proofs while i < segment_count and merges them into a single BatchTarget with chained continuity (block numbers, timestamps, state roots, pubdata hash, priority op prefixes).
verify_batch_commitment
- Computes blob_commitment_hash = keccak(opening_x || opening_y || kzg_versioned_hash).
- Computes batch_commitment = keccak(batch fields || blob_commitment_hash) and connects it to the public batch commitment.
verify_version_and_reserved_data
- Enforces blob_bytes[0..34] = 0 (2‑byte version + 32‑byte reserved).
verify_latest_market_data
- Decodes big‑endian mark prices and funding prefix sums from the blob header and connects them to batch.new_public_market_details.
handle_delta_chain_proof
- Verifies the delta recursion proof and parses AggregatedDeltaTarget.
verify_aggregated_delta
- Recomputes the account‑delta root from the delta proof and must enforce equality with batch.new_account_delta_tree_root.
- Derives the delta evaluation point z = Poseidon2(pubdata_hash(blob_bytes[BLOB_ACCOUNT_OFFSET..]), account_delta_root) and asserts it equals the delta proof’s evaluation_point.
handle_blob_evaluation_proof. Verifies the blob‑evaluation proof and connects:
- batch.new_account_delta_tree_root == blob.account_delta_tree_root
- (kzg_versioned_hash, opening_x, opening_y)
- blob_bytes[i]
- batch.new_public_market_details == blob.public_market_details
verify_delta_polynomial_evaluation
- Replays the pubdata polynomial over blob_bytes[BLOB_ACCOUNT_OFFSET..] at the same z and matches the delta proof’s evaluation.

Blob Bytes Layout (126,976 bytes total = 4096 × 31)

Offsets are inclusive ranges (0‑based), sizes in bytes.

[0..1] Version (2B, big‑endian) – enforced zero in wrapper.
[2..33] Reserved (32B) – enforced zero in wrapper.
[34..1053] Mark Prices (255 x 4B, big‑endian per u32)
- For market i in [0..254], mark_price[i] at [34 + 4i .. 34 + 4i + 3].
[1054..3348] Funding Rate Prefix Sum (255 × 9B)
- Per market i: [0]=sign_flag (1 if negative, else 0); [1..4]=abs limb hi (u32 BE); [5..8]=abs limb lo (u32 BE).
[3349..126,975] Account‑Delta Pubdata Region
- Encoded as base‑16 numbers: each number is prefixed by a length nibble; then that many nibbles follow.
- The wrapper splits each byte into 2 nibbles (little‑endian nibble order per byte) and feeds them to EvaluateBitstreamGate.

How these bytes feed other components:

Polynomial coefficients (blob‑eval circuit): the entire blob is chunked into 4096 groups of 31B. Each group is parsed as a big‑endian 32B integer by prepending a 0x00 byte and then reduced into BLS12-381 scalars, ensuring < modulus (see blob_polynomial.rs: from_bytes).
Pubdata hash for delta FS: wrapper packs [3349..end] into 7‑byte big‑endian limbs and Poseidon2‑hashes the sequence to compute pubdata_hash.
Bitstream: wrapper splits [3349..end] into nibbles and feeds them into EvaluateBitstreamGate to reconstruct the polynomial evaluation at z.

Delta Polynomial Evaluation Fiat-Shamir Challenges

The delta polynomial evaluation is performed as follows:

The coefficients of the delta polynomial are extracted from the account-delta pubdata region of the blob bytes, specifically from blob_bytes[BLOB_ACCOUNT_OFFSET..].
The evaluation point z is derived from both the account-delta pubdata and the account_delta_root. This is calculated as z = Poseidon2(pubdata_hash, account_delta_root), where:
- pubdata_hash is obtained by hashing the blob bytes from the account offset to the end using Poseidon2 (blob_bytes[BLOB_ACCOUNT_OFFSET..]).
- account_delta_root is sourced from the delta recursion proof.

This approach ensures that the delta polynomial evaluation is intrinsically linked to both the actual blob data and the resulting account delta tree root, thereby providing strong integrity and consistency guarantees.

BlobEvaluationCircuit

The BlobEvaluationCircuit is a component used in the WrapperInnerCircuit. It is responsible for evaluating the KZG polynomial commitments over the blob data using the BLS12-381 elliptic curve. The circuit takes as inputs the blob data, the corresponding KZG commitments, and the evaluation points. It then computes the evaluations of the polynomials at the specified points and verifies that these evaluations are consistent with the provided KZG commitments.

The BlobEvaluationCircuit performs the following key functions:

blob_data_hash = hash(version_and_reserved || market_details || account_delta_tree_root)
blob_polynomial_opening_x == hash(blob_data_hash || kzg_versioned_hash)
blob_polynomial_opening_y == evaluate_polynomial(blob_polynomial, blob_polynomial_opening_x)

Where:

blob_polynomial is the polynomial computed from the blob bytes (the whole blob bytes, not just a part like in verify_delta_polynomial_evaluation).
version_and_reserved is a fixed 32-byte prefix of the blob bytes.
market_details is the market details of the batch (not part of the blob bytes, but they are checked to be the same in the WrapperInnerCircuit).
account_delta_tree_root is the new account delta tree root of the batch.
kzg_versioned_hash is the versioned hash of the KZG commitment of the blob polynomial.
blob_polynomial_opening_x and blob_polynomial_opening_y are the $x$ and $y$ of the KZG opening proof $y = P (x)$ .

This ensures that the blob data is correctly committed to the KZG polynomial and that the evaluations are valid.

EvaluateBitstreamGate

The EvaluateBitstreamGate is a custom gate used within the WrapperInnerCircuit. It is responsible for evaluating the blob bytes using a bitstream representation. It takes as inputs an evaluation point and the blob half-bytes, and computes the evaluation of the blob polynomial at the given point. The gate ensures that the evaluation is consistent with the bitstream representation of the blob data.

The evaluation is performed using a sequence of state updates using an Horner-like method state(i+1) = state(i) * x + next_half_byte, where x is the evaluation point and next_half_byte is the next half-byte from the blob data.

WrapperOuterCircuit and Wrapper Circuit

The second wrapper circuit is the WrapperOuterCircuit, which is responsible for verifying the proof generated by the WrapperInnerCircuit. It takes as public inputs the proof of the inner circuit along with its public inputs, and verifies the proof using Plonky2’s proof verification mechanism. Together, the WrapperInnerCircuit and WrapperOuterCircuit are encapsulated within the structure WrapperCircuit.

The WrapperOuterCircuit uses Poseidon Goldilocks BN128 (also known as BN254) as its hash function, which is Ethereum-friendly. This ensures compatibility with Ethereum smart contracts, which may be used to verify the proofs generated by the WrapperOuterCircuit.

Findings

Below are listed the findings found during the engagement. High severity findings can be seen as so-called "priority 0" issues that need fixing (potentially urgently). Medium severity findings are most often serious findings that have less impact (or are harder to exploit) than high-severity findings. Low severity findings are most often exploitable in contrived scenarios, if at all, but still warrant reflection. Findings marked as informational are general comments that did not fit any of the other criteria.

ID	Component	Name	Risk
#00	wrapper_circuit.rs	Delta-TX Root Equality Check Not Enforced in Wrapper	High
#01	wrapper_circuit.rs	Missing Enforcement of Equality Allows Non-Empty Initial Delta Root in Wrapper	High
#02	recursion/wrapper_circuit.rs	verify_batch_commitment Omits old prefix priority operation hash (Binding Hardening)	Low
#03	recursion/wrapper_circuit.rs	Unused Return Value in verify_aggregated_delta (Clarity/Dead Code)	Informational

#00 - Delta-TX Root Equality Check Not Enforced in Wrapper

Severity: High Location: wrapper_circuit.rs

Description. In verify_aggregated_delta, the wrapper intends to enforce that the delta layer’s reconstructed account‑delta tree root equals the TX layer’s batch.new_account_delta_tree_root. However, the code computes a boolean with is_equal_hash(...) and never asserts or connects it. Since is_equal_hash returns a BoolTarget without side effects, this check is effectively a no‑op and the constraint is not enforced.

let account_delta_tree_root = aggregated_delta.get_root(&mut self.builder);
self.builder.is_equal_hash(
    &batch.new_account_delta_tree_root, &account_delta_tree_root);

Impact. A malicious prover can submit a delta proof whose public root differs from the TX layer’s new_account_delta_tree_root while the wrapper still accepts. This breaks the intended binding between the TX aggregation and the delta layer. Because subsequent checks (e.g., evaluation point derivation and polynomial replay) are tied to the delta proof’s root, this mismatch can allow inconsistent state to pass, undermining the soundness of the cross‑layer linkage.

Recommendation. Enforce equality by directly connecting the hashes:

self.builder.connect_hashes(batch.new_account_delta_tree_root, account_delta_tree_root);

Client Response. The developers applied the suggested fix.

#01 - Missing Enforcement of Equality Allows Non-Empty Initial Delta Root in Wrapper

Severity: High Location: wrapper_circuit.rs

Description. In the inner wrapper circuit’s handle_segment_proofs, the code intends to enforce that the first segment starts from an empty account delta tree root (i.e., batch.old_account_delta_tree_root == EMPTY_ACCOUNT_DELTA_TREE_ROOT). However, the current implementation computes a boolean equality via is_equal_hash(...) but never asserts or connects it. Since is_equal_hash returns a BoolTarget without side effects, the check is effectively a no‑op and the constraint is not enforced.

This allows a malicious prover to provide a first segment whose old_account_delta_tree_root is not the designated empty root, while still producing a valid proof. This breaks the intended initialization invariant for segment aggregation and can undermine the correctness of batch chaining.

let empty_account_delta_tree_root =
    self.builder.constant_hash(EMPTY_ACCOUNT_DELTA_TREE_ROOT);
self.builder.is_equal_hash(
    &batch.old_account_delta_tree_root,
    &empty_account_delta_tree_root,
);

Impact. The first segment’s starting state can be non‑empty. This weakens the batch aggregation guarantees and may permit inconsistent or adversarial state to be folded into the batch.

Recommendation. Enforce the equality by connecting the hashes:

self.builder.connect_hashes(batch.old_account_delta_tree_root, empty_account_delta_tree_root);`

Client Response. The developers applied the suggested fix.

#02 - verify_batch_commitment Omits old prefix priority operation hash (Binding Hardening)

Severity: Low Location: recursion/wrapper_circuit.rs

Description. The verify_batch_commitment function builds the batch’s public Keccak commitment that external verifiers (e.g., L1 contracts or off‑chain clients) can recompute. Conceptually, it should bind the batch’s execution summary to the DA/KZG used on L1. In practice, it computes:

blob_commitment_hash = keccak(opening_x || opening_y || kzg_versioned_hash); then
batch_commitment = keccak( end_block_number || batch_size || start_timestamp || end_timestamp || old_state_root || new_state_root || new_validium_root || on_chain_operations_pub_data_hash || priority_operations_count || new_prefix_priority_operation_hash || blob_commitment_hash )

This means the digest does not directly include the following batch fields such as:

old_account_delta_tree_root
new_account_delta_tree_root
new_public_market_details
old_prefix_priority_operation_hash

Two of these are bound indirectly by other constraints (root and market details), but one omission (old_prefix_priority_operation_hash) weakens the external binding to the L1 “starting point” of the priority‑operation chain.

old_account_delta_tree_root: For each batch, this should be the designated empty root. The wrapper should enforces this invariant in handle_segment_proofs by checking batch.old_account_delta_tree_root == EMPTY_ACCOUNT_DELTA_TREE_ROOT
new_public_market_details and new_account_delta_tree_root: These are tied to the blob bytes and KZG sidecar via handle_blob_evaluation_proof and the delta/bitstream checks, so they are indirectly committed by the digest through blob_commitment_hash (and verified by the SNARK).
old_prefix_priority_operation_hash:
- Context: suppose X priority requests have already been committed on L1, and this batch adds Y new requests. The contract verifies that the new_prefix_priority_operation_hash equals the chain hash of the first X+Y requests in storage. The circuit computes this by iteratively hashing starting from old_prefix_priority_operation_hash through the next Y requests: H(... H(H(old_prefix, pr_{X+1}), pr_{X+2}) ... pr_{X+Y}).
- The digest binds only new_prefix_priority_operation_hash (and priority_operations_count) but not the old_prefix_priority_operation_hash. While the circuit enforces chaining across segments, and the contract enforces that the final new_prefix_priority_operation_hash matches its own storage chain hash, the digest alone does not attest to the batch’s assumed starting prefix.

Impact. With the current contract design (which checks the final new_prefix_priority_operation_hash against L1 state), there is no obvious exploit. However, omitting old_prefix_priority_operation_hash narrows the external L1 binding and leaves room for future issues (e.g., a mismatch between the starting prefix assumed by the batch and the value stored on L1).

Recommendation. Bind old_prefix_priority_operation_hash in batch_commitment (and have the contract recompute/verify the same digest). This strengthens L1 and L2 equivalence.

Client Response. The developers applied the suggested fix.

#03 - Unused Return Value in verify_aggregated_delta (Clarity/Dead Code)

Severity: Informational Location: recursion/wrapper_circuit.rs

Description. The function verify_aggregated_delta returns a HashOutTarget (account_delta_tree_root) but the caller does not use this return value. The function already performs the necessary checks internally, and the returned root is redundant in the current flow.

Given the current usage, returning the account_delta_tree_root is unnecessary. The wrapper subsequently checks batch.new_account_delta_tree_root == blob.account_delta_tree_root in handle_blob_evaluation_proof, so retaining this return value does not add safety.

Impact. Informational/clarity.

Recommendation. Remove the return type and do not return the root from verify_aggregated_delta.

Client Response. The developers applied the suggested fix.
